Painting NMM armour - an illustrated guide.

I've decided to present this guide in a three step format but with some reservations. Step-by-step guides are a great way to present information but they won't always give an accurate representation of the painting process. A step-by-step approach is not a true reflection of how I usually work. There's a lot of trial and error involved and I tend to make it up as I muddle along. I don't want to give the impression that mini painting is simply a matter of following an exact set of steps to achieve a guaranteed result. It's all the little accidents happening along the way that keep things 'interesting'.

Mine is a stylised rather than realistic style of painting and my approach to NMM is pretty basic. I wanted to give a feel of the model's armour reflecting the colours in it's environment. My assumption is that the armour will reflect warm colours from the ground below and cool ones from the sky above. It's the same basic theory applied to painting a simplified chrome effect, the sort of thing so popular in 80's airbrush artwork. The look I was aiming for was for something far subtler but this provided the starting point from which I developed my ideas.

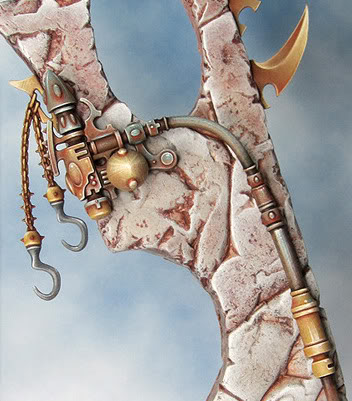

The colour palette for the armour was picked directly from the diorama's base. I'd experimented with a NMM effect on some of the bits and pieces attached to the monoliths and liked how things turned out so I decided to approach the armour in the same way.

Colour Palette
All the colours used are from Games Workshop.

Base colour/shade:

Calthan Brown & Devian Mud Wash

Calthan Brown + BlazingOrange

Mid tones:
Calthan Brown + Ice Blue + Codex Grey

Mid tone mix + IceBlue + Skull White

Final highlights:
Skull White

For me one of the most interesting things about this palette is using orange/brown and blue together as these colours have a high level of contrast and the potential to clash. Its challenging to use this contrast to proved visual interest without producing an overly colourful 'eye popping' finish. Equally I needed to avoid over mixing the colours and getting a drab muddy looking mess.

Painting guide.

As always what you will find here is an explanation of how I approached a particular painting challenge rather than a definitive guide on the only or best way to do it. I almost always paint by building up translucent layers. I try to keep the paint layers as subtle as I can to create a smooth transition.


Step 1 Base colour/shade.

The choice of brown is vital to the finished look of the mini. I could have used a warm grey but I wanted to have an earthy feel to the colour palette. The whole mini was base coated with Calthan Brown and then given a light wash of Devian Mud to help pick out the detail.

Step 2 Mid tones.

This is where all the interesting stuff happens with the colours. The mix of the brown base colour with ice blue gives all sorts of interesting variations and its here that the transition from warm to cool happens. Broadly speaking I add blue and a little grey to the brown and gradually work up in layers to the lighter/cooler mid tones. Each layer will contain a little more of the blue/grey in it than the last but it's important to keep some brown in there. Only the lightest highlight layers will have no brown in the mix at all. The combination of blue/brown in the mix keeps the colours from becoming too bright and artificial looking. Some of the best NMM I've seen has been created using a very narrow and almost 'muddy' palette of colours and it is this that I was trying for.
The introduction of a small amount of codex grey into the mid tones helped to stop the brown/blue mix taking on a greenish tint. In a few places there is a little scorched brown added to the mix. This gives some mid tone areas an almost purple tint. The greenish and purple tints I am talking about are very subtle but their presence gives a greater depth to the colour range and make the armour more interesting to the eye. The overall visual impression of the finished armour is one of a blue/grey colour with warm shadows.

Step 3 Highlighting.

As I worked up from mid tones to highlights I began adding white to the mix up to pure white for the very finest highlights. To give a shiny/reflective look to the armour the final highlights need to be kept as fine and sharp as possible. There are also a few very tiny dots of white to create the effect of the armour glinting. I always work with diluted colour - it is far more affective to build up the final highlights with a few very subtle applications.
To get a bit of interest into the shadows there are some reflections/glints built up with a Calthan Brown + Blazing orange mix.


Colour Palette - Gold/Brass

The gold/brass areas were created using the same stages and approach as mentioned above but with a different colour palette. Tiny touches of Ice Blue & Blazing Orange enhance the shiny/reflective effect.

Base colour/shade:
Calthan Brown

Mid tones:
Calthan Brown + Iyanden Darksun


Iyanden Darksun + Skull White

Ice Blue & BlazingOrange

UPDATE 29 June 2012
I've put together an illustrated guide to painting NMM Copper
as an expansion to this guide.

Detailed Views.

A few mercilessly enlarged pictures to illustrate my NMM technique.

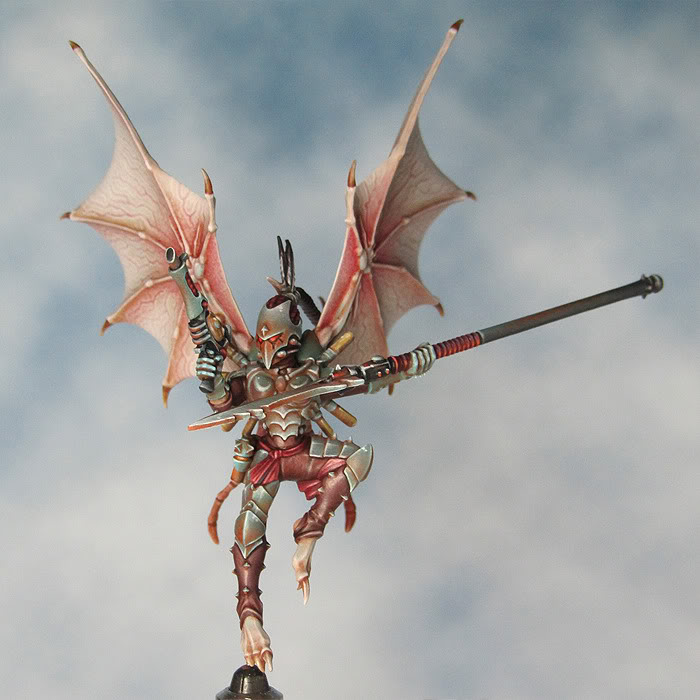

 The upper surfaces reflect the cooler (sky) colours and the lower ones reflect the warmer (earth) colours. The tones in between the two tend to be neutral. Highlights are kept small & sharp.

Compare the bluer mid tones on the inside of the leg to the warmer mid tones on the outside. The use of orange in the shadows helps to add to the reflective look and adds interest.

 Some examples of the gold/brass effect. Notice the reflections of the ice blue colour.
