Thursday 27 October 2022

Project P30 - Part 16b

The End is Nigh - Part 2.


With the exception of the base (and that’s a whole new chapter) the remaining work on my Tank is a matter of finishing things off. Some parts need to be painted from scratch but most of the work involved tying-up lose ends from earlier work.

Fix the hand holding the bell into place.


This was a far more straightforward process than the mecha arm. I simply glued the bell hand in place with plastic glue. Once that had set, I filled the seam with dilute PVA and then retouched the paintwork. This felt like an enormously significant step as I was finally adding the sub-assemblies to the model. At long last it was all coming together!


Fix the chimneys back into place.


Now things really started to near completion as the re-addition of the chimneys would complete the model’s silhouette. I’d removed the chimneys earlier to make them easier to paint and I’d expected their reattachment to be a tricky process. In the end it went very smoothly. The chimneys were pinned, then glued back into position, leaving relatively minor seams to cover. For the smaller chimney, there was a matter of adding some corrosion over the join. A little corrosion can hide a multitude of sins!


For the larger chimney, I had to re-sculpt some of the bubbly flesh texture over the join and then fill some hairline cracks with dilute PVA. I also added a few bony spines to this. Overall I’m very happy with the result. In fact, I think this area works better than it did before I removed the chimneys! Painting this area was a matter of matching up the colours to my existing scheme.

I was now finally able to add a long planned feature to the model. Some time ago I decided that I wanted coarse bristles sprouting from the Daemon’s back and shoulders. I’ve used grass tufts and paintbrush bristles to create similar effects in the past.



My first attempt, using grass tufts, was an instant fail! The ‘hair’ looked too fluffy. Fluffy is not what we want or expect from Nurgle! For ‘plan B’ I used false eyelashes for the hairs which have a curve to them and taper to a point. They proved to be perfect. I cut them into small clusters, or individual hairs, and glued them into place with PVA. Once again this was tricky work but the final effect is exactly what I wanted!

4. Painting the Tentacles


I’ve a notebook with seven years worth of ideas written down for this project. As my plans developed and changed I kept notes to make sure nothing was forgotten. But, by the time I started painting, there were far to many, sometimes conflicting, plans for one project. Much of my decision making has been around which ideas to implement and which to reject. As the scheme developed the process of editing my plans became easier.

The tentacles are an example of the ‘less is more’ approach I’ve taken in the later stages of this project. I’d initially envisioned them as a larger version of the tentacles on Gutrot Spume, complete with stripes and dripping slime. But I felt that the stripes would bring an unnecessary new element to the scheme which would make the tentacles stand out from the rest of the model in an unsatisfactory way.


Rather than stripes, I’ve painted the same freehand texture as used on the sides and back of the model. This adds interest to the tentacles but ties them in to the overall scheme. I’ve used colour to make them pop against the rest of the model. Starting from green hues at the base they graduate through a pinkish flesh tone to blue tips. The blue is my old favorite Bering Blue, which I’ve used throughout the scheme. It’s at its most obvious on the tentacle tips.

5. Add drool.


I rejected the idea of slime dripping from the tentacles as being just too much! This also applied to most of my plans for adding extra slime and goo to the model. My tank from 1990 has a liberal application of slime made from PVE glue and then painted. I strongly felt that I already had enough slime and goo on my new model and any more would begin to dominate the painting.

But there was one area where I very much wanted to break out the microbeads and water effects. This was the mouth (the one in the Daemon’s head) where I felt the addition of drool would be beneficial. The mouth was one of the very first areas I painted and its been a long wait to be able to finish it!


I decided to focus the effect to one side of the mouth rather than filling the jaws with stringy drool. This was done with that old favorite UHU glue. Once the glue had set (it goes rubbery rather than hard) I built up several layers of water effects and microbeads. Once dry I gave it three coats of gloss varnish.

In the final of these updates I’ll describe how I made and painted the base for my Daemon Engine.

Wednesday 19 October 2022

Project P30 - Part 16a

The End is Nigh!

It will come as a great surprise to anyone if I state that a lot has happened since I last posted regularly on this blog! Not least the long anticipated return of Golden Demon UK at Warhammer World on October 1 & 2. I posted some finished pics here during the weekend of the competion but it’s time to indulge in a little time travel as I bring things up to date.

For some time my gut feeling was that I’d finish the Daemon Engine this year but there’s nothing like a deadline to boost momentum! I felt that, with some effort, the October deadline might be achievable so I decided to go for it. The last few months have seen some adrenaline fueled painting and I now feel more confident about that deadline. Things have been coming together well and the end is in sight!

As I move towards the closing stages of a project I usually create a checklist of things to do. This helps me to keep focused, stay on target and avoid missing anything out in a rush to get finished. It’s been especially useful this time around as there have been many steps to complete. In my next few posts I’ll describe that list of jobs in the order I did them.

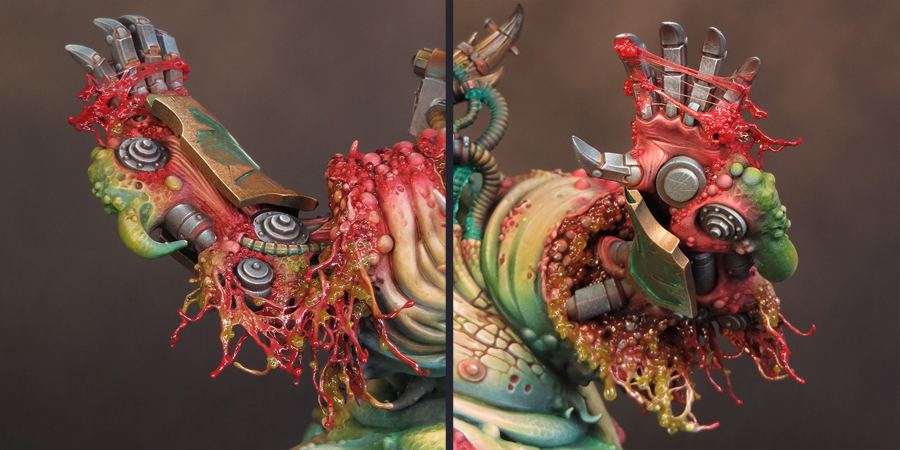

Finish the mecha arm.


This arm has been the most physically difficult area of the model to paint so far! In retrospect, I wish I had found a way to paint the arm as a sub-assembly, which would have made things a lot easier.


However, the more interesting problem was to address the transitions between areas of flesh and metal. The arm came from the Forge Fiend kit and as such already depicted a union of monster and machine. This was a good starting point. I especially liked the hand as it matched the size of the fleshy hand holding the bell. However, some of the fleshy parts of the arm lacked the definition and texture that I wanted. I built up these areas with a combination of greenstuff, texture paste and microbeads. This had the additional benefit of helping to integrate the arm with the overall scheme by the use of common textures. This applied most especially to the bubbly/blistered texture I’d added elsewhere.

The next task was to address the stump out of which the mechanical arm protruded. Microbeads (of course) provided much of the texture, but I wanted something more. I wanted to create a semi liquid, ragged texture, as if the flesh was in the process of flowing into a new form. My greatest inspiration for this was the writing of Michael Moorcock, and most especially ‘Stormbringer’, which has had a huge influence on how I see the forces of Chaos and their effects. To create the flowing flesh, I used a variation of the cotton wool and water effects splash effect (shown HERE). In this case, however, I used a PVA glue and paint mix instead of water effects.


I was very pleased with the final effect but the overall look of the arm didn’t feel right to me. After some thought I decided that I needed more metal and machine parts in proportion to the fleshy parts. Taking my nerves in hand, I clipped off the large green tentacle (I was to later use it elsewhere) and added the spikey guard rail from the Plague Burst Crawler. It was a nasty job but I was much happier with the arm once it was done!


Paint the sides of the tank.


I regarded the sides of the tank as three distinct areas: the side panels, the tracks and the entropy cannon. The side panels are especially significant because it was here I wanted to create a major transition between flesh and metal.

I’d decided upon the colours for this transition as a part of my ongoing work. The fleshy parts of the side panels were to be a deep green, transitioning from the lighter green upper parts. I felt that a flashy NMM effect would be inappropriate for the metal parts. So I used a brown hue inspired by patinated bronze. This was the same treatment I’d used on the ‘boiler’ at the back of the tank. It is a colour that contrasts with the green but not in a way that draws the eye away from the focal points of the model.

The transition is created through the use of a freehand texture. This was based upon the painted texture of the upper flesh areas, so it felt like a part of the overall scheme. I’d not been looking forward to painting this transition but, by the time I came to do it, things had become fairly straightforward. All my choices had been made as an on-going part of the project’s evolution, so I was able to focus on executing them rather than worrying about what to do! All in all this was one of the faster parts of the paint scheme to complete.


Now I could paint the tracks. Once again my choices were informed by my earlier decisions. I kept the scheme for this area fairly simple. I painted the tracks and all the associated wheels, gears and general gubbins in the same dull grey NMM I’d used elsewhere. This would contrast with the adjacent parts of the model but fit in with the overall scheme. I had some plans for adding lots of mud and dirt but decided against this. As things have progressed, I’ve been editing my plans as it is easy to go OTT with this project. There is already a lot going on with the overall scheme.


Rather than adding heavy layers of dirt, I painted some fairly subtle rust effects and blended them into the brown shadows to give a grimy feel. My global shade colour is Black Leather from Scale Colour which helped with this a great deal. I am particularly fond of shading cool or neutral greys with brown hues. As always, the photographs I took for lighting reference were extremely useful when it came to placing my highlights and shadows!

The final job for this overall area was to paint the two entropy cannons. These were painted as sub-assemblies and provided a nice little sub-project.


The sides of the tank were the last significant areas of the tank to be painted.

The remaining work consists mostly of finishing things off and bringing together previously painted sub-assemblies.
